Shifting traffic to create new public space
As a result of reduced traffic volume on Southbank Boulevard, we are able to create new public space by shifting traffic to the northern side of Southbank Boulevard. Using the southern side of Southbank Boulevard to create new public space is critical because of its optimal solar access – most exposure to sunlight because it faces north. Extensive site analysis, including access and spatial requirements for adjoining properties, underground service locations, geo-technical soil analysis and flood mapping has also assisted to determine the best location for new public space.
Detailed Microsimulation Traffic Modelling (PDF, 1.0 MB) and the preparation of a Draft Functional Layout (PDF, 3.1 MB) was undertaken to prove that current traffic requirements will still be met. Improved public transport infrastructure and dedicated bicycle lanes will also form part of the new road layout. Large intersections such as Southbank Boulevard/City Road and Southbank Boulevard/Sturt Street will have shorter crossing distances and be easier for pedestrians to use. There are proposed changes to current car parking numbers, locations and car parking types (view the Summary of Proposed Parking Changes (DOC, 33KB). Up to 2.5 hectares of public space can be created.
Place your cursor on the map and click on a numbered area to see more detail.

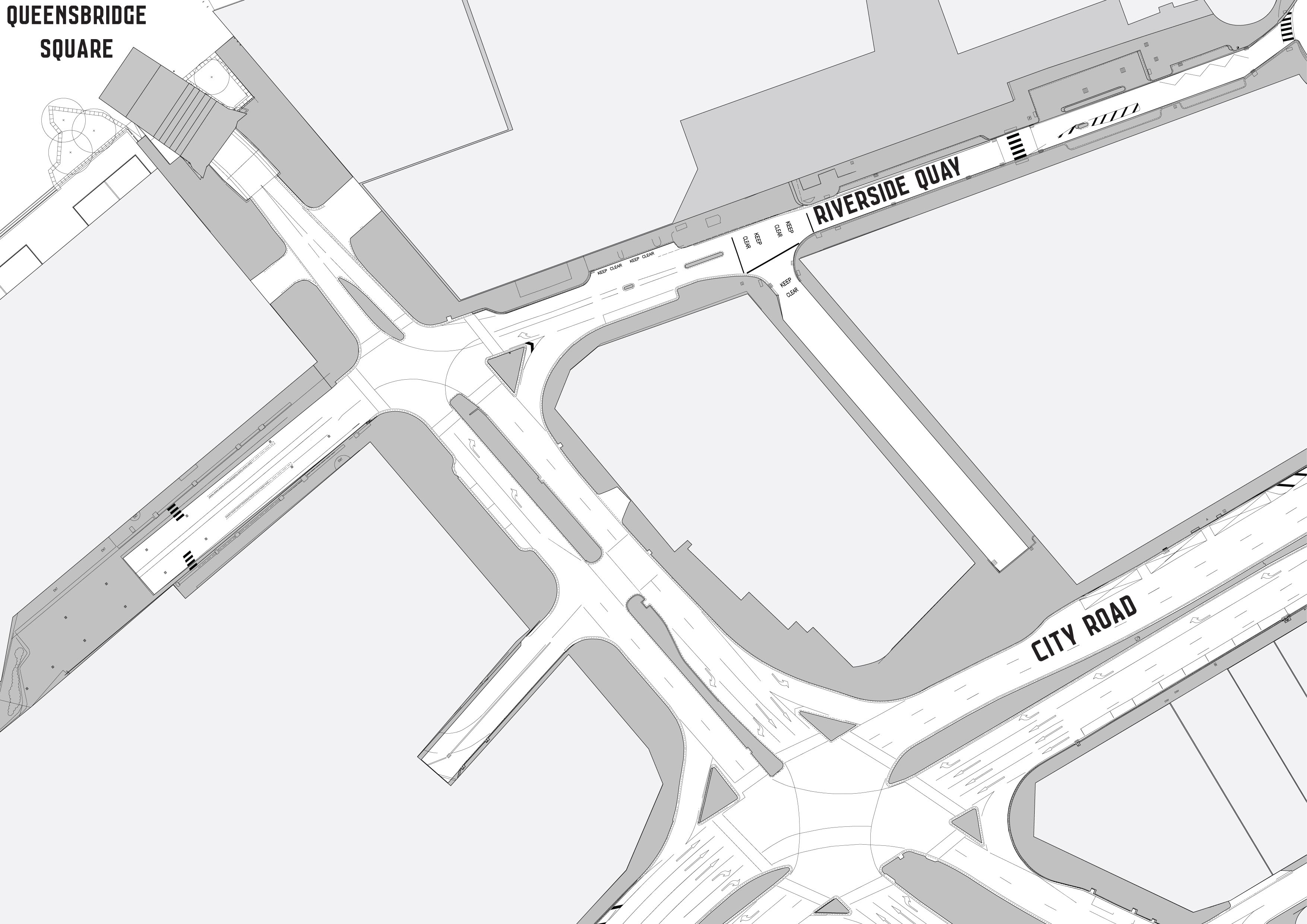

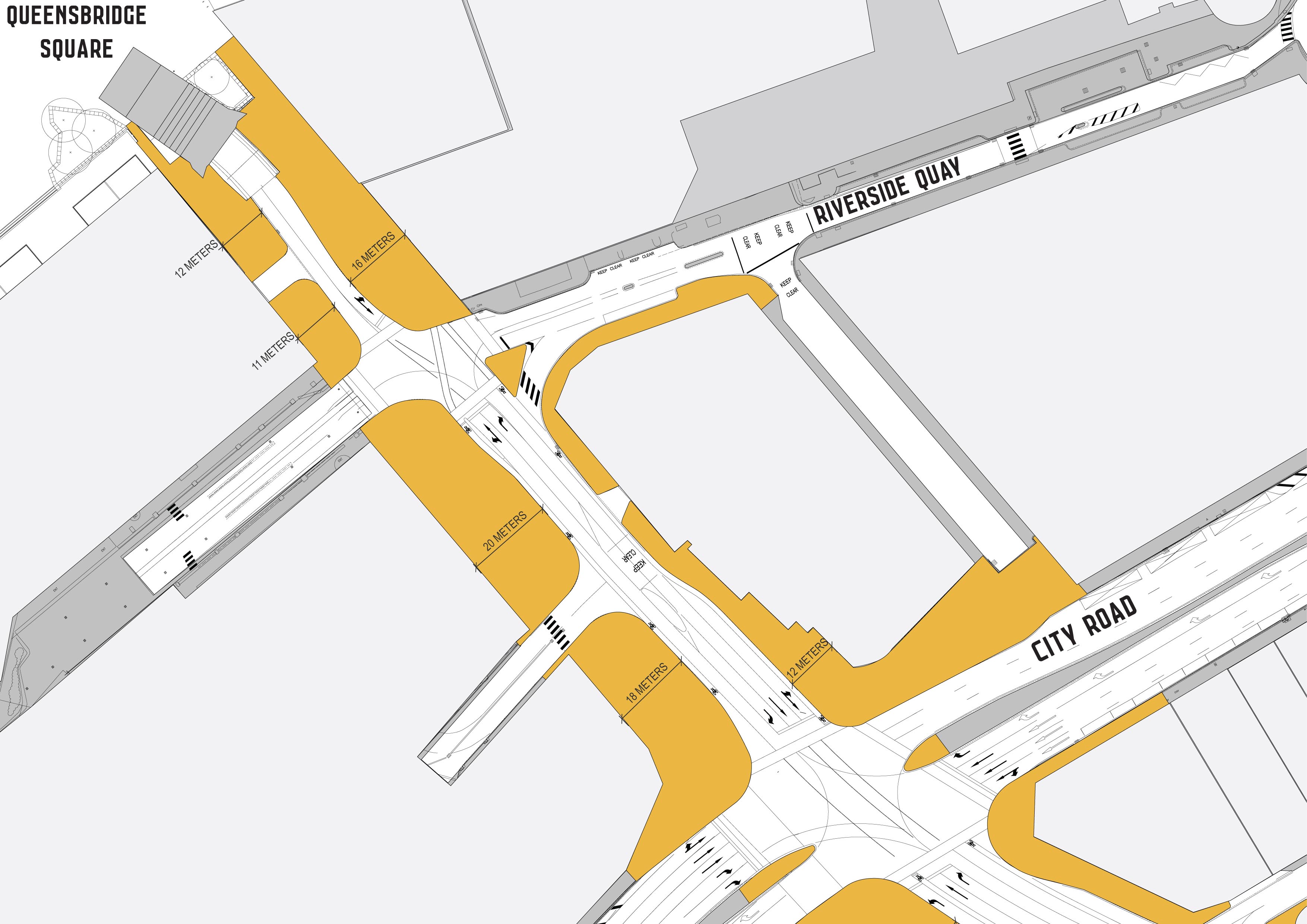

Queensbridge Square to City Road
Compare the existing and proposed conditions by using the slider below
Key changes
- Better connection for pedestrians and cyclists to Southbank Promenade
- Opportunities to better integrate Southbank Boulevard and Queensbridge Square
- Safer and more accessible pedestrian experience at the City Road/Southbank Boulevard intersection

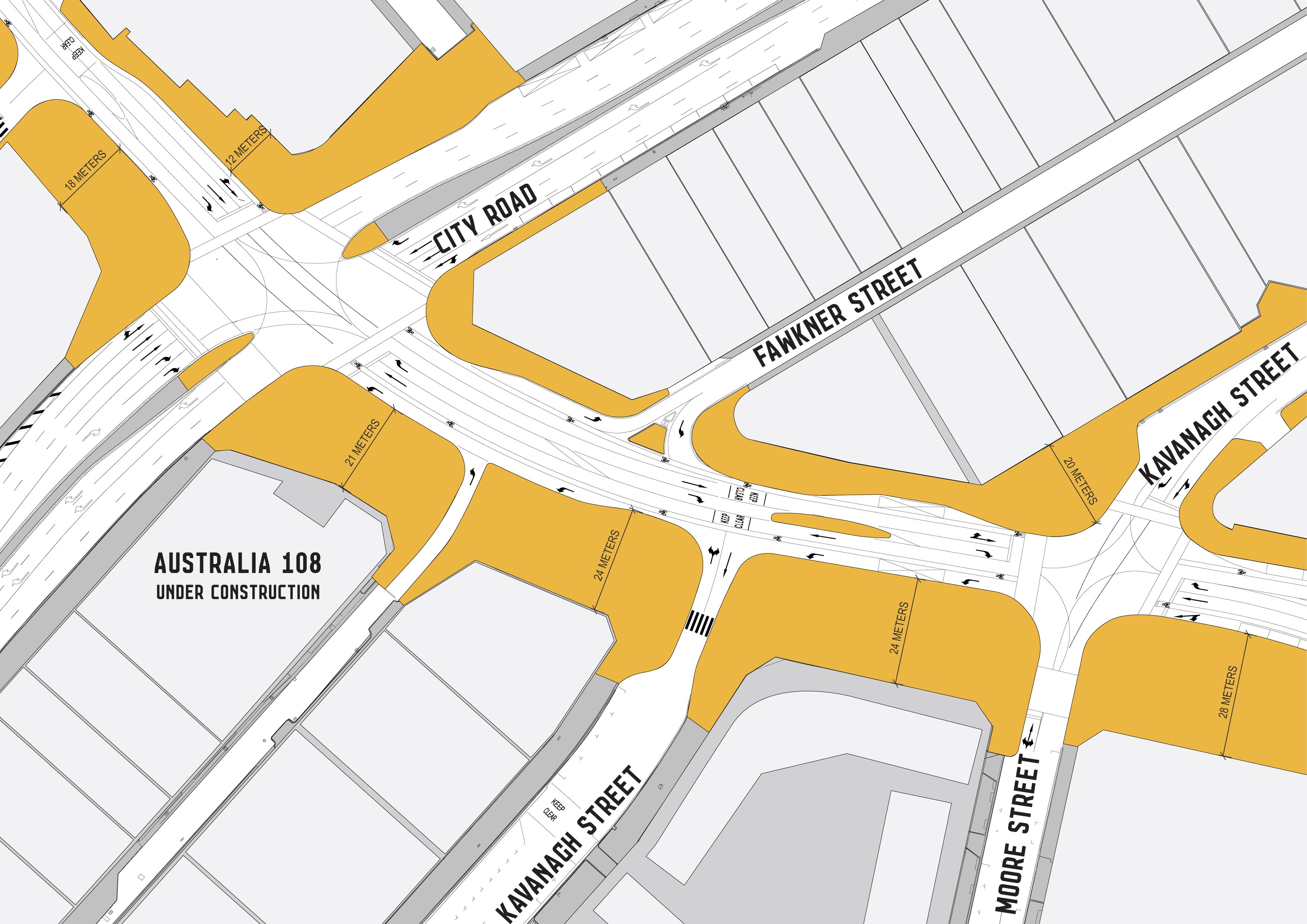

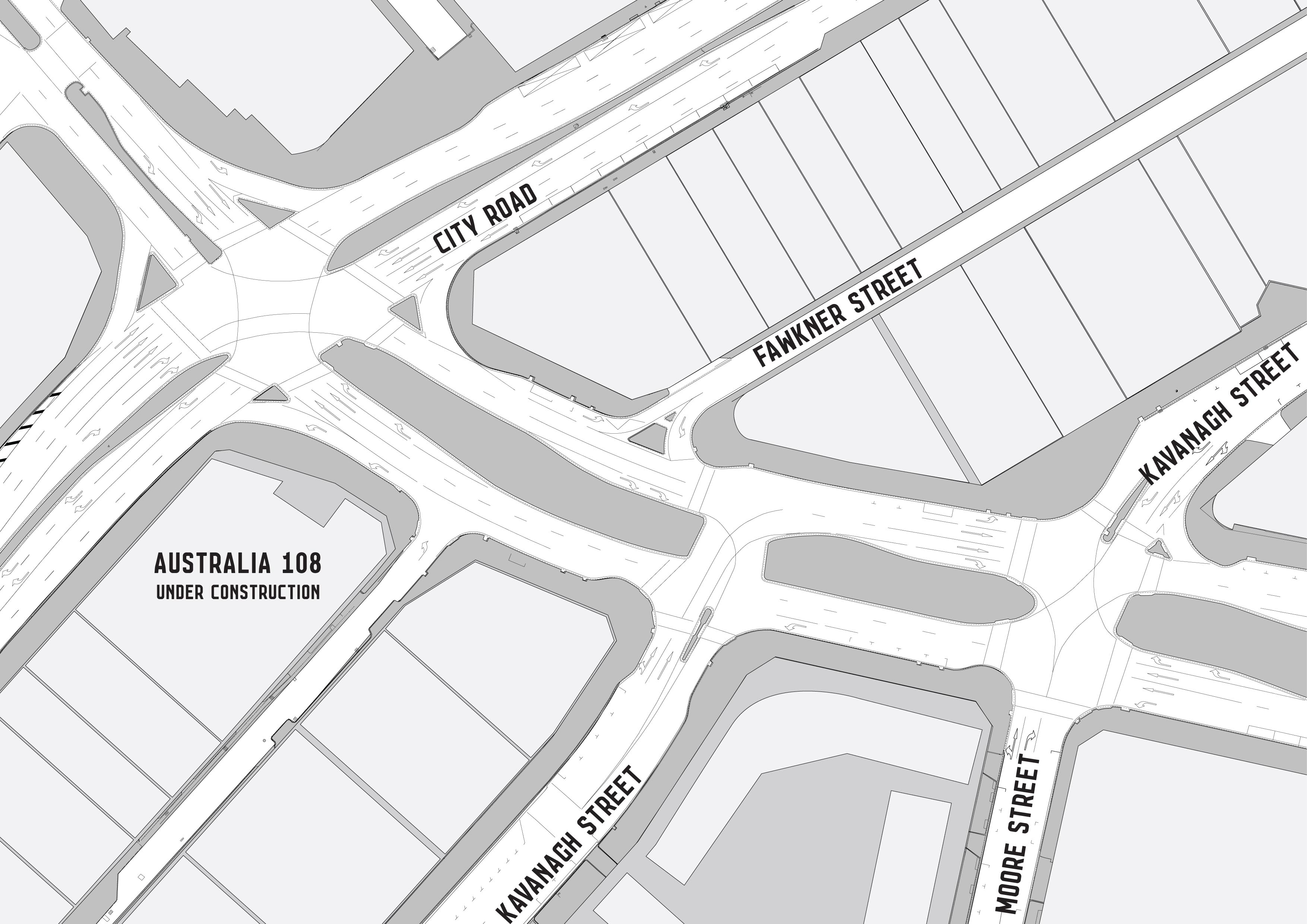

City Road to Moore Street
Compare the existing and proposed conditions by using the slider below
Key changes
- Large areas of new public space
- Existing access to Moore, Kavanagh and Fawkner Streets maintained
- Dedicated left-turn lane into Kavanagh Street to ease p.m. peak demand and keep through traffic moving
- New bus stops

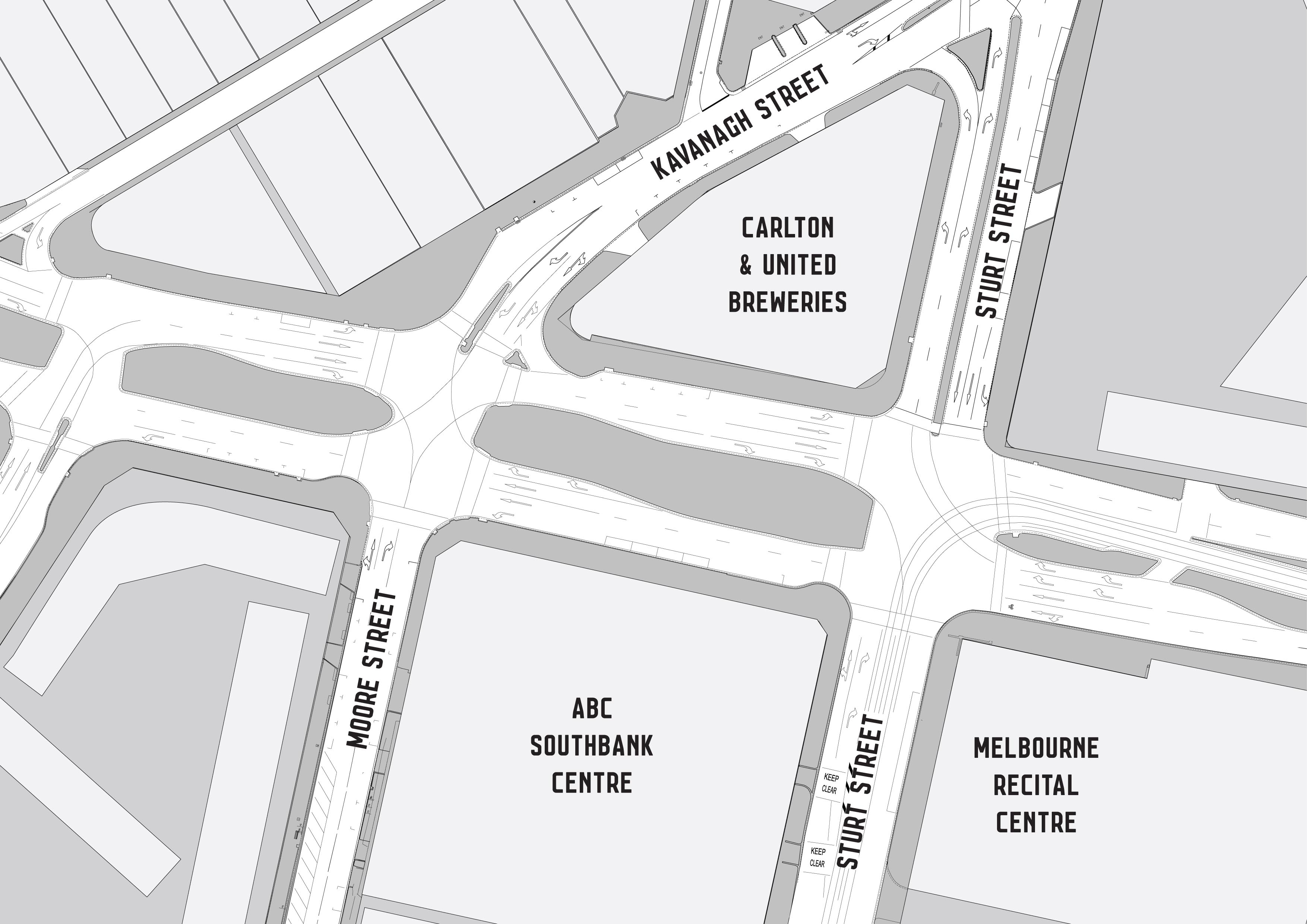

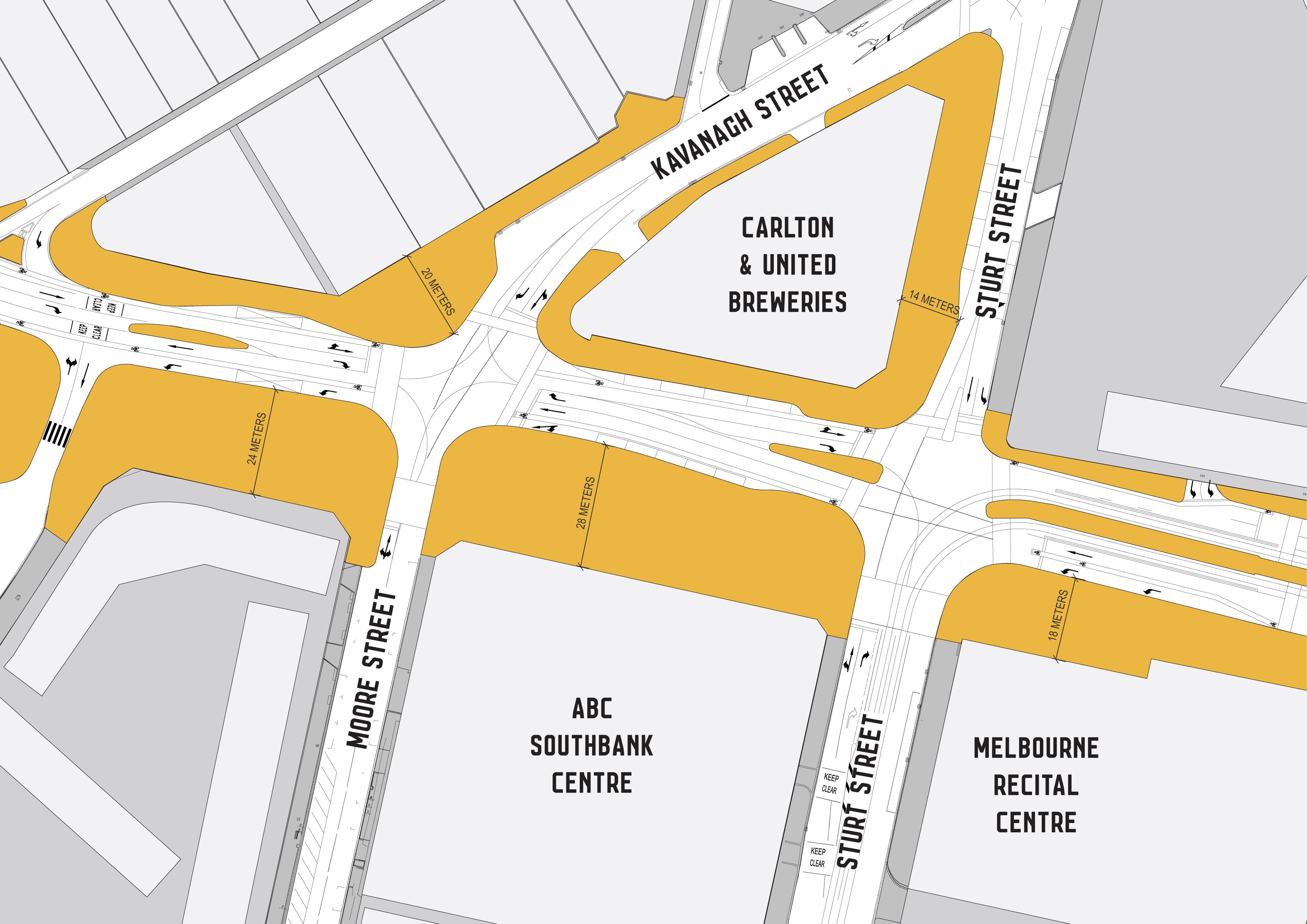

Moore Street to Sturt Street
Compare the existing and proposed conditions by using the slider below
Key changes
- An extensive area of new public space in front of the ABC building (27 m x 100 m) with high solar access due to low-rise buildings
- New dedicated right-turn lane from Southbank Boulevard to Kavanagh Street (north) for access to Arts Centre and Australian Ballet car parks

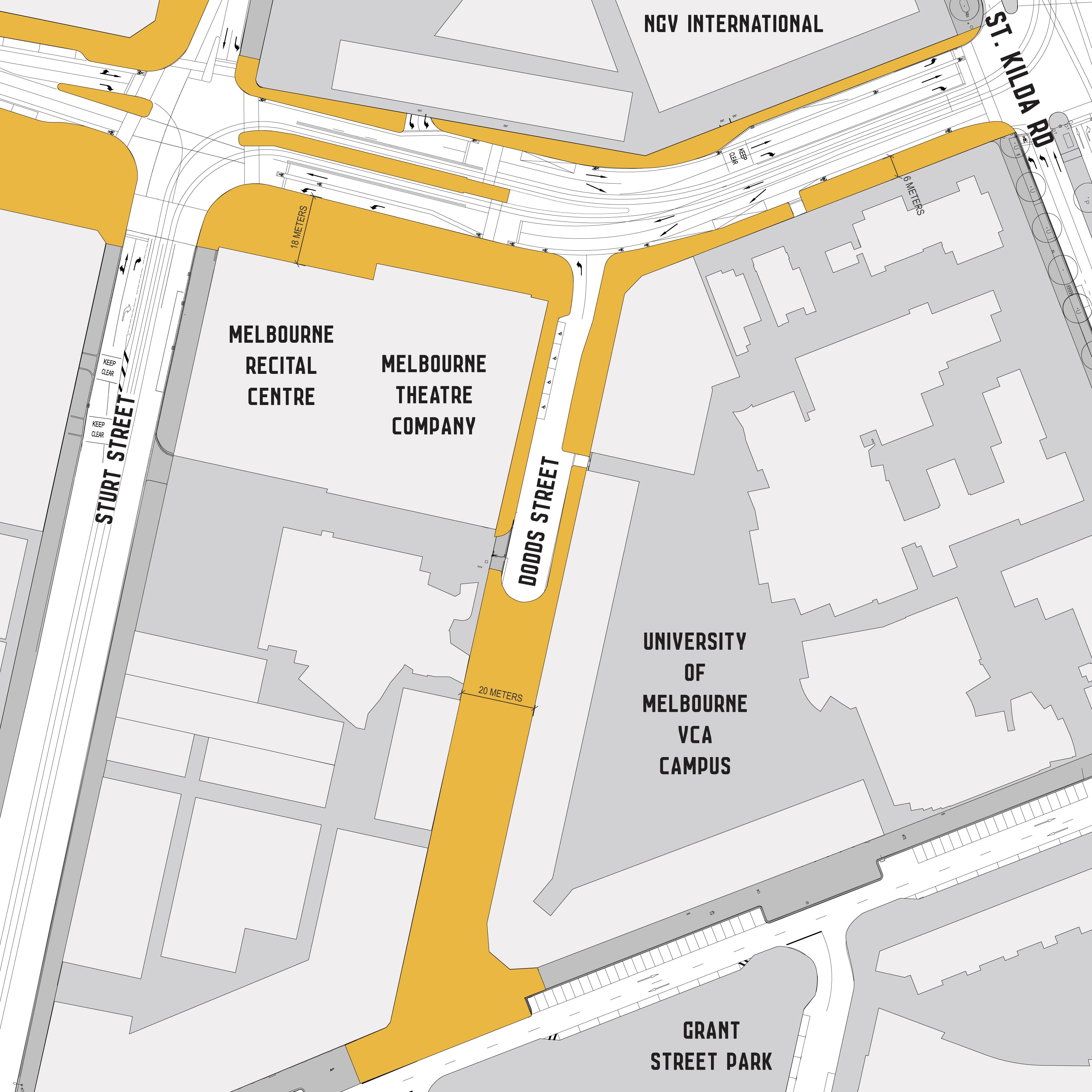

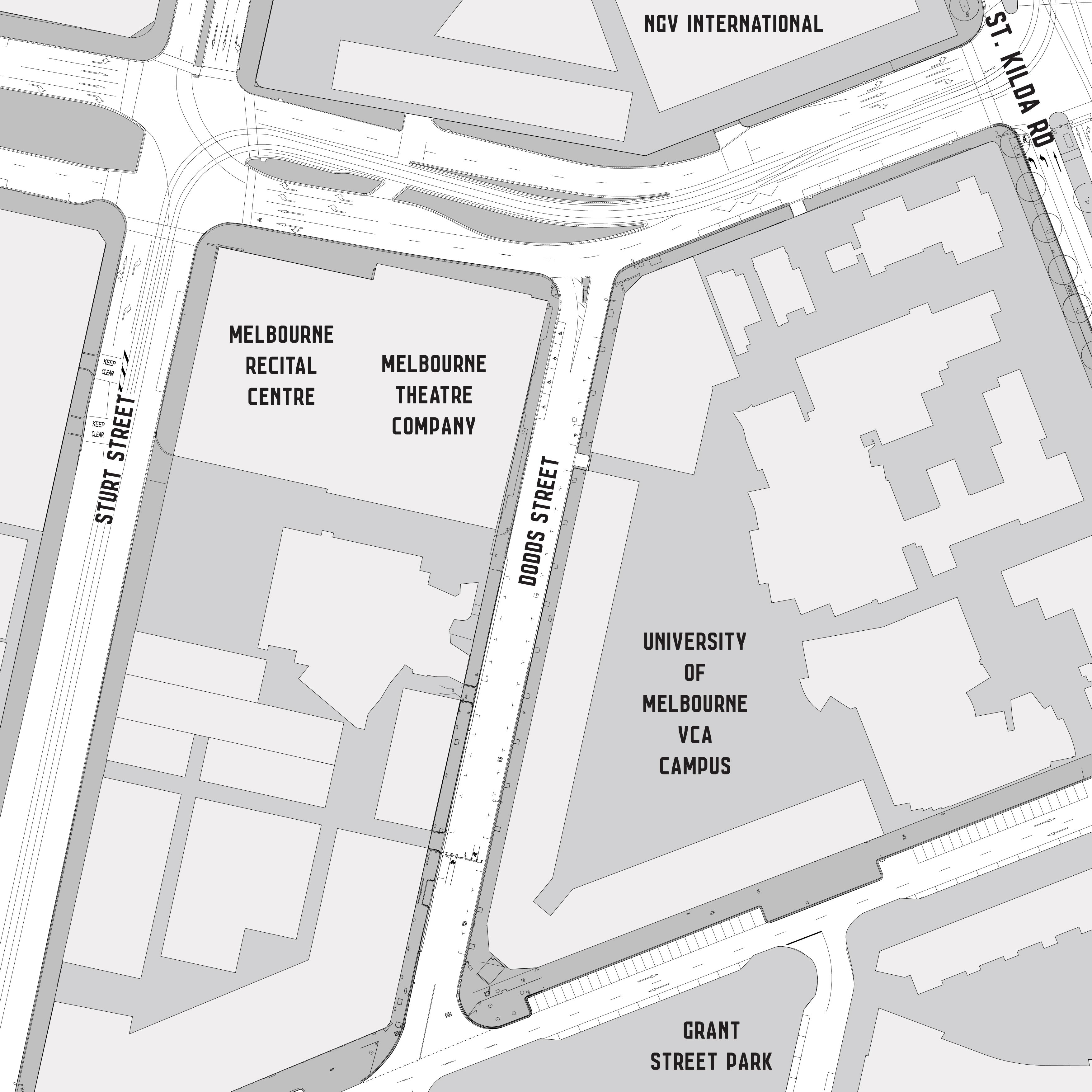

Sturt Street to St. Kilda Road
Compare the existing and proposed conditions by using the slider below
Key changes
- New elevated arts precinct tram stop – consolidating two existing one-way stops for the #1 tram route
- New bus stops
- Removal of right-turn lane from westbound Southbank Boulevard into Sturt Street
